“DMC provides” an Adaptive Radome Diagnostic Systemdesigned for high-precision, economical, and reliable testing and repair of radomes for defense and aerospace applications. It utilizes advanced techniques to perform high-fidelity measurements of a radome’s effect on an antenna’s performance
|
Gimbal Positioner (Ku) |
Moving Range | Az ±55˚, El ±55˚, Roll ±180˚ |
| Max. Speed | 6 deg/sec | |
| Position Accuracy | Azimuth/Elevation 0.08˚ RMS with Load | |
| Repeatability | Azimuth/Elevation ±0.02 deg. | |
| Encoder Resolution (Az/El) | 0.003 / 0.004 Deg | |
| Max. Load | 1 kg | |
|
Gimbal Positioner (Ka) |
Moving Range | Azimuth ±45°, Elevation ±45°, Roll ±180° |
| Max. Speed | 6 deg/sec | |
| Position Accuracy | Azimuth/Elevation 0.08° RMS with Load | |
| Repeatability | Azimuth/Elevation ±0.02 deg. | |
| Encoder Resolution (Az/El) | 0.003/0.004 Deg |
| ITEM | SPECIFICATION |
|---|---|
| Driving Method |
AZ : DD Motor EL/ROLL : Servo Motor + Precision Reducer + Rack |
| Load Capacity | Radome : Max. 30 kg |
| Drive Range |
AZ : ±200° EL : ±56° ROLL : ±180° |
| Drive Precision | AZ/EL/ROLL : 0.08° RMS |
| Positioning Repeatability | AZ/EL : ±0.01° |
| Drive Speed |
AZ : Max. 1.0 RPM EL : Max. 0.7 RPM |

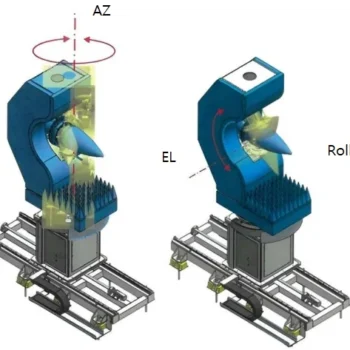

Gimbal Positioner
DMC Gimbal Positionerdelivers the uncompromising mechanical accuracy required for next-generation radome and antenna measurement. Featuring high-resolution encoders and three mutually orthogonal axes (Azimuth, Elevation, and Roll), our gimbal precisely simulates real-world flight conditions to quantify boresight error, transmission efficiency, and pattern distortion. When integrated with DMC 360 Software, it ensures fast, reliable, and high-fidelity testing up to 110 GHz, transforming your test range into a precision diagnostic facility.
Key Features to Highlight:
3-Axis Control: Azimuth, Elevation, and Roll for comprehensive coverage.
High Accuracy: Resolution down to 0.025 (per the DMCRF spec sheet).
Integrated Software: Seamless operation with DMC 360 Software for advanced analysis.
Application: Ideal for high-fidelity testing of radome and antenna system
| ITEM | SPECIFICATION |
|---|---|
| Drive Method |
AZ/EL/ROLL : Servo Motor + Precision Reducer + Rack ROLL : Servo Motor + Worm Reducer |
| Load Capacity | Over 1.0 kg |
| Drive Range |
AZ/EL : ±55° ROLL : ±180° |
| Driving Accuracy | AZ/EL : 0.08° RMS with Load |
| Drive Speed | AZ/EL/ROLL : Over 6°/sec |
| Encoder Resolution | 0.003 / 0.004 Deg |

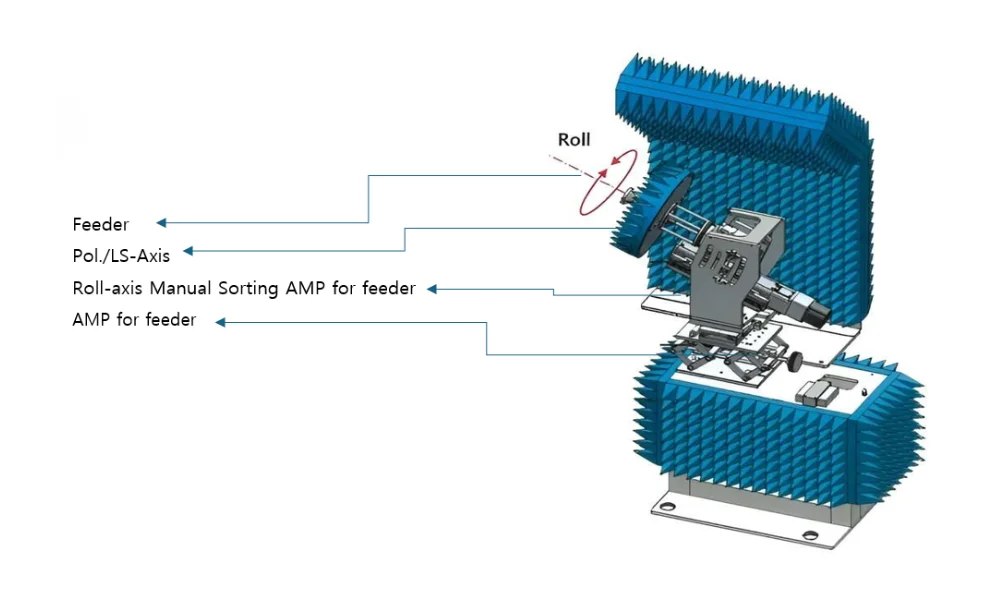

Auto Feeder Changer
DMC Auto feeder for Gimbal Positioner woks with high Encoder resolution as listed in table with 0.,08 deg RMS with load.
| ITEM | SPECIFICATION |
|---|---|
| Drive Method | Worm Reducer + Step Motor |
| Load Capacity | 10 kg |
| Drive Range | Continuous 360° Rotation |
| Location Precision | 0.1° |

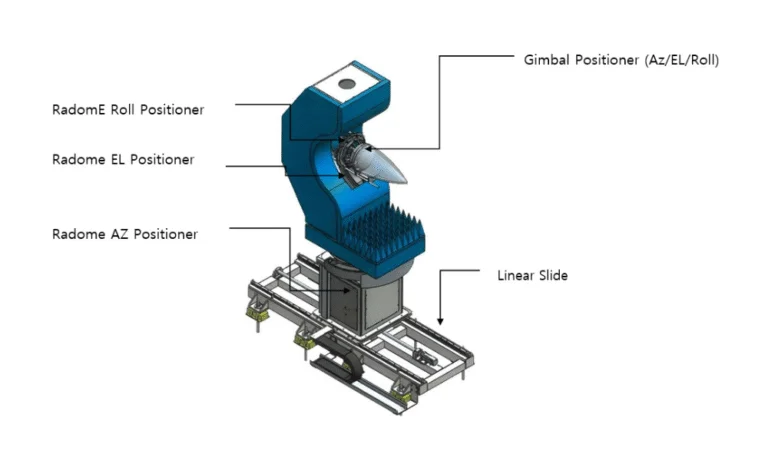

RADOME AUT POSITIONER
Key Parameters Tested in Radome Positioners
- Bore Sight Error: The positioner rotates the radome/antenna assembly in Azimuth (AZ) and Elevation (EL), and the test equipment measures the difference between the true mechanical pointing angle and the actual electrical angle of the transmitted beam.
Impact: Directly affects the radar’s tracking accuracy (i.e., how precisely the radar can determine the location of a target).
- Transmission Efficiency: The test system measures the received signal power with the radome in place and compares it to the power received without the radome (the reference measurement).
Impact: Directly affects the radar’s maximum detection range. Lower efficiency means less signal is transmitted and less is received.
- Pattern Distortion:The positioner sweeps the radome/antenna assembly across the desired angular range, and the test equipment maps the full 3D radiation pattern, focusing on the strength of the side lobes relative to the main beam.
Impact: Increased side lobes can make the radar susceptible to jamming or cause it to detect energy from unwanted directions.
| ITEM | SPECIFICATION |
|---|---|
| Driving Method | LM Guide + Ball Screw + Servo Motor |
| Driving Range | 1.4m |
| Item | Description | Specification |
|---|---|---|
| Radome Positioner | Max Load | 30kg |
| Moving Range | Az ±200˚, El ±56˚ | |
| Gimbal Roll | ±180˚ | |
| Radome Roll | ±180˚ | |
| Tx Pol | ±180˚ | |
| Max Speed |
Azimuth 1.0 RPM Elevation 0.7 RPM |
|
| Slide | 1.4m |
